Your data

Change streams

Your UI updates when the data does: publish the changes of a collection and your app subscribes over WebSocket with the user's credentials. No polling.

A change stream tells your app when a document is inserted, updated or deleted, the moment it happens. You define under Change streams which changes of a collection to publish, and the app opens a WebSocket and receives them as JSON. No polling, no timer.

Like aggregations, streams are defined on the server, so a client can only subscribe to what you approved.

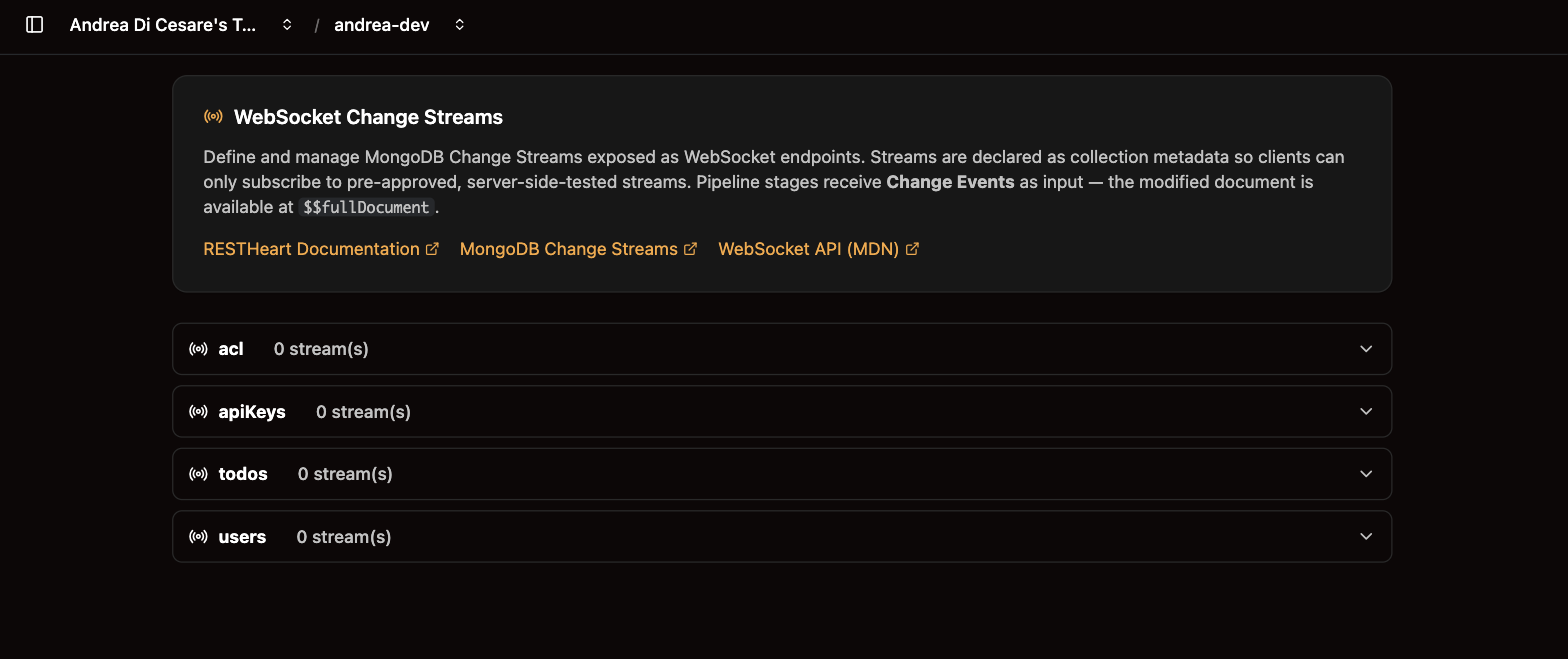

The Change streams page: the collections of the service

Define a stream

  1. Open Change streams, expand the collection and click Add Stream.

  2. Give it a uri, the name the app will subscribe to, and the stages that select which events to send.

  3. Save. The stream is available at once.

{
  "uri": "active-orders",
  "stages": [
    { "$match": { "operationType": { "$in": ["insert", "update"] }, "fullDocument.status": { "$ne": "cancelled" } } }
  ]
}

An empty stages array sends every change. The stages are a pipeline, with the same editor as aggregations, but they run on change events, not on documents. A change event looks like this, and the document is under fullDocument:

{
  "operationType": "update",
  "documentKey": { "_id": { "$oid": "64abc…" } },
  "fullDocument": { "_id": { "$oid": "64abc…" }, "status": "shipped", "customerId": "alice" },
  "updateDescription": { "updatedFields": { "status": "shipped" }, "removedFields": [] }
}

So a filter on a field of the document is {"fullDocument.status": "shipped"}, not {"status": "shipped"}. operationType is insert, update, replace or delete.

The patterns that cover most apps:

Stream Stages

Everything

[]

New documents only

[{ "$match": { "operationType": "insert" } }]

Documents with a given value

[{ "$match": { "operationType": { "$in": ["insert", "update", "replace"] }, "fullDocument.priority": "urgent" } }]

Everything but deletes

[{ "$match": { "operationType": { "$nin": ["delete"] } } }]

Try it in the console

Every stream has a Try panel. Enter the username and password of one of the service’s users, click Connect, then change a document from another tab or with curl: the events appear in the log as they happen. Copy URL gives you the address to paste in your code.

Subscribe from your app

const ws = new WebSocket('wss://alice:secret@f3a9c1.eu-central-1-free-1.restheart.com/orders/_streams/active-orders');

ws.onmessage = event => {
  const change = JSON.parse(event.data);
  console.log(change.operationType, change.fullDocument);
};

ws.onclose = event => {
  // 1006 usually means the credentials were refused
  console.log('closed', event.code);
};

A browser cannot set headers on a WebSocket, so the credentials go in the URL and the browser turns them into Basic Auth for the handshake. The user must be one of the service’s users, with a permission that allows GET on the stream’s path. The Admin JWT cannot open a stream.

Or over Server-Sent Events

The same stream is also available over plain HTTPS as Server-Sent Events, for a client that can set headers, such as a mobile app or a server. Ask for it with the Accept header:

curl -N -H 'Accept: text/event-stream' -u alice:secret \
  https://f3a9c1.eu-central-1-free-1.restheart.com/orders/_streams/active-orders

Each event carries the change as data, and an id the client sends back as Last-Event-ID on reconnect to resume where it left off. WebSocket and SSE clients can share one stream. See SSE on restheart.org.

From a script

Streams live in the collection’s metadata, in the streams array, next to aggrs:

Operation API

Read the definitions

GET /<collection>/_meta

Save them

PATCH /<collection> with { "streams": [ { "uri": "…​", "stages": […​] } ] }

Subscribe

wss://f3a9c1.eu-central-1-free-1.restheart.com/<collection>/_streams/<uri>

With rhc, they are part of the setup file. The full reference is on restheart.org.
